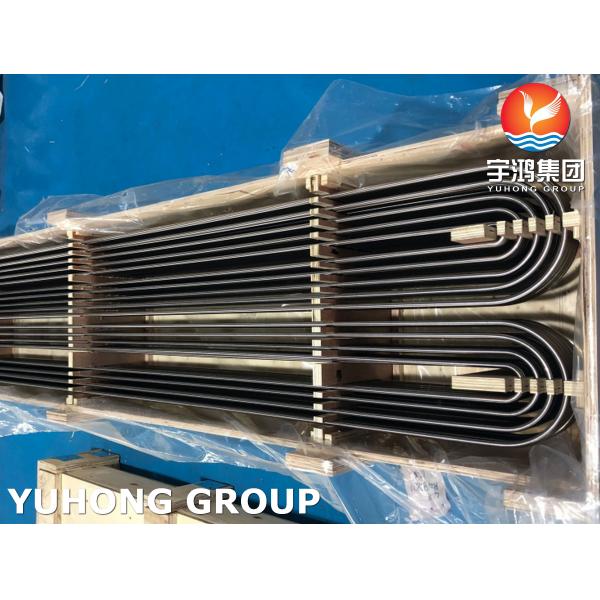

ASTM A270 TP316L Sanitary Stainless Steel Seamless Pipe U Bend

ASTM A270 covers the grades of seamless, welded and heavily cold worked austenitic and ferritic/austenitic stainless steel sanitary pipes. Seamless pipes shall be manufactured using a process that does not involve welding at any stage. Welded pipes shall be manufactured using an automated welding process with no filler metal added during the welding process. Heavy cold-worked pipes shall be cold-worked to a reduction of not less than 35% in wall thickness and weld thickness prior to final annealing. Filler must not be used when welding.

All materials shall be supplied in heat treated condition. A length of flat rolled stock or a single tube should be chemically analyzed for each heat. Each pipe shall be subjected to a mechanical test such as reverse flattening test, hydrostatic test or non-destructive electrical test.

The following surface finishes can be specified: Milling Finish, Mechanically Polished Surface Finish, 80 Finish, 120 Finish, 180 Finish, 240 Finish, Electropolished Finish, and Max Rough Average Surface Finish. Only the inner surface can be polished longitudinally, and the inner surface, the outer surface, or both, can be polished circumferentially.

ASTM A270 A270M Sanitary Tubing is ideal for the dairy, food and beverage industries where the highest levels of purity and cleanliness are required. It is certified to the requirements of ASTM A270, 3A standards and most user specifications.

We stock all plumbing pipe sizes from 1/2" (12.7mm) to 8" (203.2mm) OD in 20' standard lengths. Custom lengths and sizes are available upon request.

ASTM A270 A270M ASME SA270 grades TP304L and TP316L are available from stock. Other grades are available upon request.

A270 Sanitary Tubing Chemical Composition

ASTM A270 Pipe Equivalent
