EN 10216-2 P265GH Carbon Alloy Steel Seamless U Bend Boiler Tube

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	EN 10216-2
Certification :	ISO9001-2008, API 5L, API 5CT
Price :	1-150000 USD
Payment Terms :	T/T, L/C
Supply Ability :	1500tons/month
Delivery Time :	30-70 days

Add to Cart

Product Details
Company Profile

EN 10216-2 P265GH Carbon Alloy Steel Seamless U Bend Boiler Tube

EN 10216-2 P265GH Carbon Alloy Steel Seamless U Bend Boiler Tube

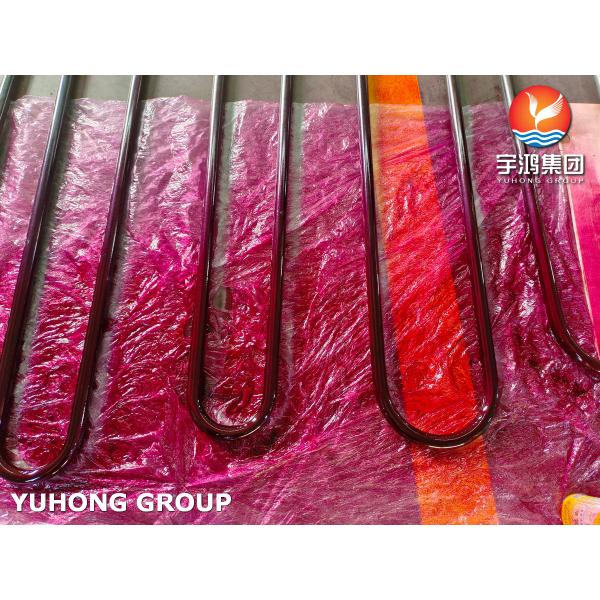

YuHong can offer P265GH seamless carbon steel bend U tubes and we sell these products with highest quality in more than 70 countries.

EN 10216-2, steel number 1.0425 is a European standard for seamless steel tubes for pressure purposes. It covers the procedures and specifications for manufacturing high-quality non-alloy and alloy seamless steel tubes. The standard includes the following steel grades: P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10.

Chemical Composition Max

C	Si	Mn	P	S	Cr	Mo	Ni	Al	Cu	Nb	Ti	V	Cr+Cu+Mo+Ni
0.2	0.4	1.4	0.025	0.02	0.03	0.08	0.3	0.02	0.3	0.01	0.04	0.02	0.7

Mechanical Property

Grade	Steel Number	Upper yield strength or proof strength, Wall Thickness T min.				Tensile Strength Rm	Elongation A min.%
		T≤16	16＜T≤40	40＜T≤60	60＜T≤100	Mpa	longitudinal	transverse
		Mpa	Mpa	Mpa	Mpa	Mpa	longitudinal	transverse
P265GH	1.0425	265	255	245	/	410-570	23	21

Test Required

Corrosion Test
Chemical Analysis
Mechanical Tests: Flattening test, Flaring test, Flange test, Hardness Test and Hydrostatic test
Reverse-bend and Re. flat tests
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection

Applications Industry

Pharmaceutical / Chemical Equipment
Power Generation
Sea Water Equipment
Petrochemicals
Heat Exchangers / Condensers / Boiler
Gas Processing
Specialty Chemicals
Pulp and Paper Industry
