ASME SA182 F316L, 1.4404 Stainless Steel Forged Tubesheet For Heat Exchangers

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	ASTM A182 F316L, 1.4404, UNS S31603
Certification :	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	According To Clients' Request
Delivery Time :	10-90 Work Days

Add to Cart

Product Details
Company Profile

ASME SA182 F316L, 1.4404 Stainless Steel Forged Tubesheet For Heat Exchangers

ASME SA182 F316L, 1.4404 Stainless Steel Forged Tubesheet For Heat Exchangers

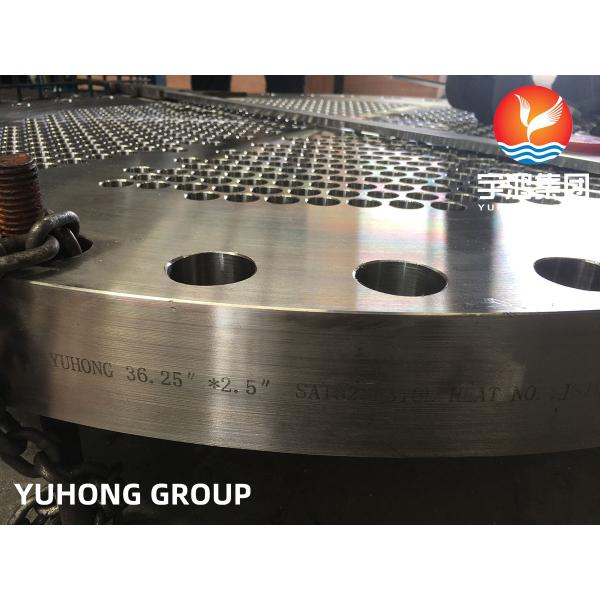

Tubesheets are one of the most important components of Shell and Tube Heat Exchangers. Stainless steel forged tubesheets are usually made from a round flat piece of forged plate which are made with holes drilled for the tube ends in a precise location and pattern relative to one another. Tube holes can be drilled and reamed and can be machined with one or more grooves which increases the strength of the tube joint. ASTM A182 F316L stainless steel is ideal for tubesheets in applications where corrosion resistance, high-temperature strength, and resistance to chemicals and acids are important. SS316L material is commonly used in environments involving exposure to chlorides, which can cause corrosion in regular stainless steels.

Equivalent Grades:

GRADE	WERKSTOFF NR./ DIN	UNS	JIS	BS	GOST	AFNOR	EN
SS316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition:

C(Max)	Si(Max)	Mn(Max)	P(Max)	S(Max)	Ni	Cr	N(Max)	Mo

0.03	0.75	2.00	0.045	0.03	10.0–14.0	16.0–18.0	0.1	2.00–3.00

Mechanical Properties:

Density	Melting Range	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	75000 Psi, 515 MPa	30000 Psi, 205 MPa	35 %

Applications:

Petrochemical Industry
Pharmaceutical Industry
Food Industry
Aviation and Aerospace Industry
Architectural Decoration Industry
Oil and Gas Industry
Heat Exchanger Parts
