    ASTM A182 F316L UNION M33 SP-83 Socket Weld Fittings For Heavy-Duty Applications

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : ASTM A182 316L
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Price : Negotiable
    Payment Terms : T/T, L/C AT SIGHT
    Supply Ability : According to Client Requirements
    Delivery Time : Depends on quantity
    • Product Details
    • Company Profile

    ASTM A182 F316L UNION M33 SP-83 Socket Weld Fittings For Heavy-Duty Applications

    Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

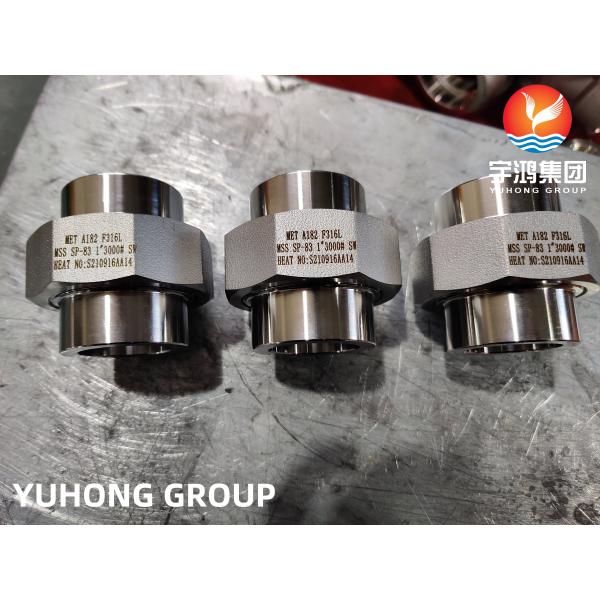

    ASTM A182 F316L Sockrt Welding UNION


    ASTM A182 F316L Socket Welding Union is a type of fitting that is used to connect two pipes in a socket welding joint. It is made from ASTM A182 F316L stainless steel, which is a low carbon version of F316 stainless steel with added molybdenum for improved corrosion resistance. This type of union is commonly used in high-pressure and high-temperature applications in industries such as oil and gas, chemical processing, and power generation. It is designed to provide a leak-proof and reliable connection between two pipes.



    ASTM A182 F316L Forged Socket Weld Fittings Chemical Composition

    %316316L316H316Ti
    C0.0-0.070.0-0.030.04-0.080.0- 0.08
    Mn0.0-2.00-2.00.0-2.000.0-2.00
    Si0.0-1.00.0-1.000.0-1.000.0- 1.00
    P0.0-0.050.0-0.050-0.040.0-0.05
    S0.0-0.020.0-0.020.0-0.020.0-0.03
    Cr16.50-18.5016.50-18.5016.50-18.5016.50- 18.50
    Mo2.00-2.502.00-2.502.00-2.502.00- 2.50
    Ni10.00-13.0010.00-13.0010.00-13.0010.50- 14.00
    Ti---0.40- 0.70
    Febalancebalancebalancebalance
    EuronormUNSBSEnGrade
    1.4401S31600316S3158H316
    1.4404S31603316S11-316L
    -S31609316S51-316H
    1.4571-320S31-316Ti


    Mechanical Properties ASTM A182 F316L Forged Socket Weld Fittings
    GradeTensile Str
    (MPa) min    		Yield Str
    0.2% Proof
    (MPa) min    		Elong
    (% in 50mm) min    		Hardness
    Rockwell B (HR B) maxBrinell (HB) max
    3165152054095217
    316L4851704095217
    316H5152054095217

    Physical Properties (Room Temperature) ASTM A182 F316L Socket Weld Fittings

    GradeDensity
    (kg/m3)    		Elastic Modulus
    (GPa)    		Mean Co-eff of Thermal Expansion (µm/m/°C)Thermal Conductivity
    (W/m.K)    		Specific Heat 0-100°C
    (J/kg.K)    		Elec Resistivity
    (nΩ.m)
    0-100°C0-315°C0-538°CAt 100°CAt 500°C
    316/L/H800019315.916.217.516.321.5500740

    Application

    • Chemical Processing
    • Oil and Gas Industry
    • Pharmaceutical Industry
    • Power Generation
    • Desalination Plants
