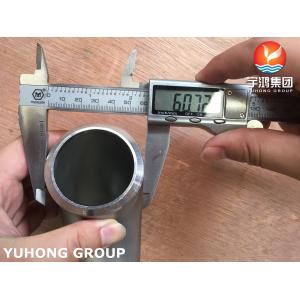

ASME SB366 WP904L-S 1.4539 N08904 Austenitic 90 Degree LR Elbow B16.9

Ask Lasest Price
Brand Name :	YUHONG
Model Number :	ASME SB366 WP904L-S
Certification :	ABS , BV, LR , DNV, GL , KR, TUV , ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1000 tons per month
Delivery Time :	Depends on quantity

Add to Cart

Product Details
Company Profile

ASME SB366 WP904L-S 1.4539 N08904 Austenitic 90 Degree LR Elbow B16.9

ASME SB366 WP904L-S 1.4539 N08904 Austenitic 90 Degree LR Elbow B16.9

The ASME SB366 is a specification that covers welded grade 904L Stainless Steel Fittings, where the term welding applies to either butt-welding or socket-welding parts for e.g, the very popularly used elbows in addition to caps, tees, reducers, and stub ends. Moreover, a Chemical and product analysis performed on the Stainless Steel 904l Pipe Fittings must conform to the chemical composition as specified by the ASME SB366.

Stainless Steel SB366 WP904L contains higher chromium and low carbon content. Lower carbon means less chromium carbide precipitation due to welding. This steel type contains as low as 0.03% of carbon content and thus reduces its susceptibility to intergranular corrosion. This kind of steel can be continuously exposed to temperatures of about 1500°F without appreciable scaling.

Chemical Composition of Grade WP904L

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Cu
SS904L	0.020 max	2.00 max	1.00 max	0.040 max	0.030 max	19.00 – 23.00	4.00 – 5.00 max	23.00 – 28.00	1.00 – 2.00

Mechanical Properties of ASTM B366 WP904L

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.95 g/cm3	1350 °C (2460 °F)	Psi – 71000 , MPa – 490	Psi – 32000 , MPa – 220	35 %

Equivalent Material of 904L Stainless Steel Fittings

Grade	UNS No	Old British		Euronorm
Grade	UNS No	BS	En	No	Name
904L	N08904	904S13	X1NiCrMoCu25-20-5	1.4539	–

904L Stainless Steel Fittings Weight Chart

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Applications

-Oil and Gas Pipeline

-Chemical Industry

-Plumbing

-Heating

-Water Supply Systems

-Power Plant

-Paper & Pulp Industry

-Food Processing Industry

-Fabrication Industry

ASME SB366 WP904L-S 1.4539 N08904 Austenitic 90 Degree LR Elbow B16.9
